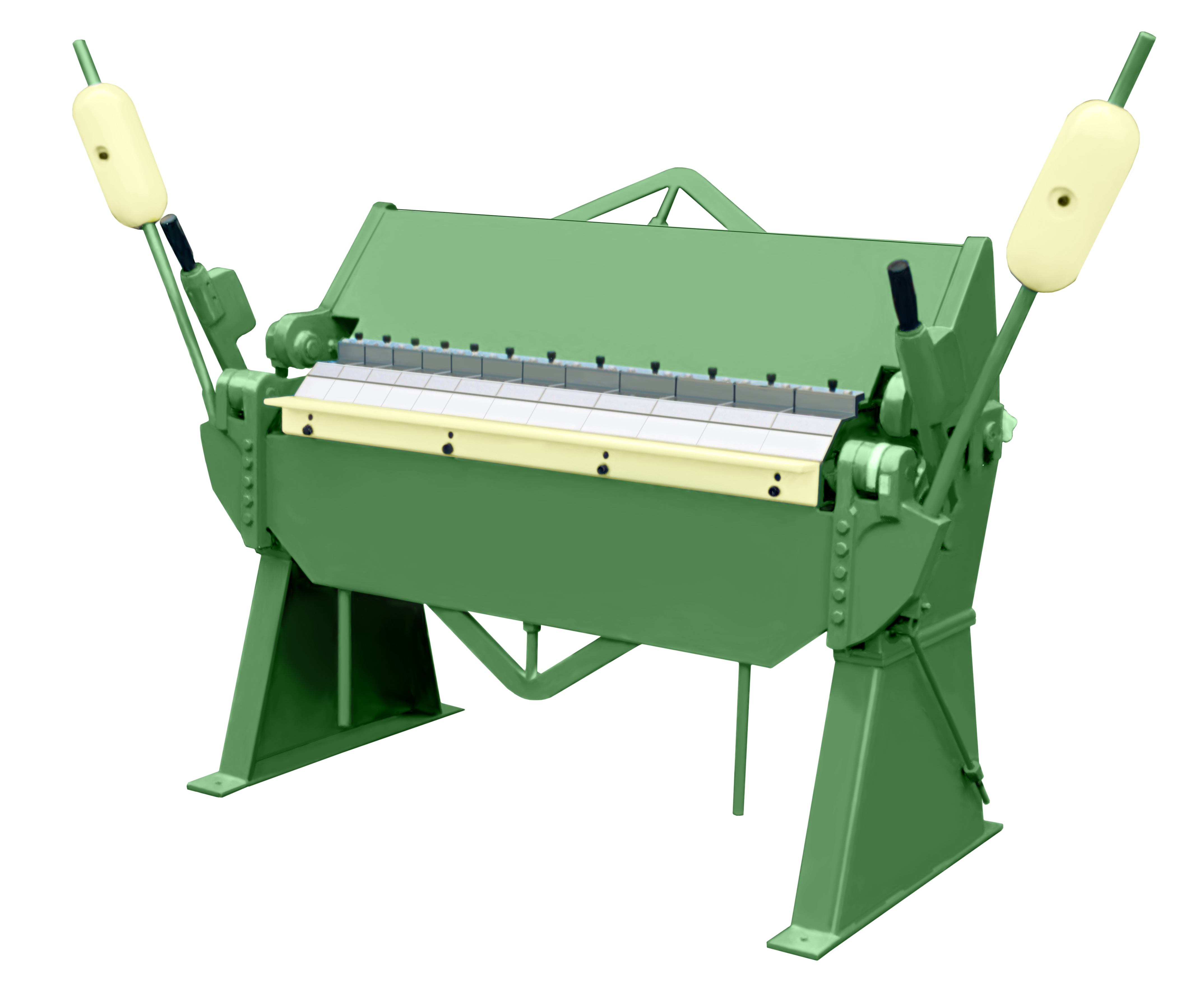

BOX & PAN BRAKE
(FLOOR TYPE)

SPECIFICATIONS\ MODEL TBB-1316F TBB-1325F TBB-1825F TBB-2516F TBB-2525F TBB-3116F
Bending length
          mm
 1220 1220 1830 2440 2440 3050
Bending thickness
          mm
 1.6 2.5 2.5 1.6 2.5 2.0
Max Lift of beam
          mm
 32 38 38 58 50 50
Beam adjustment
          mm
 16 22 22 25 22 22
Size of case
          mm              L
 1580 1830 2480 3099 3099 3759
                              W        540 760 760 787 914 914
                              H         720 1110 1120 1651 1651 1651
Shipping weight             KG 250 884 1148 1250 1820 1970

CATALOG

FEATURES:

* All-steel welded construction, plastic handgrips, and bronze bushings, which reduce wear.

* Heavy truss rods and braces are designed to give superior strength.

* Precise bed and beam alignment assures working accuracy.

* Adjustable clamping beam for a correct setting according to the sheet thickness.

* Angle stopper can adjust the bending angle.


STANDARD EQUIPMENT:

* One of counterweight for TSB-1316F, Two of counterweight for another model.

* One of the full-length bending dies is equipped with a machine.

* Operation instruction manual.

OPTIONAL FEATURES

*  Manual back gauge.
