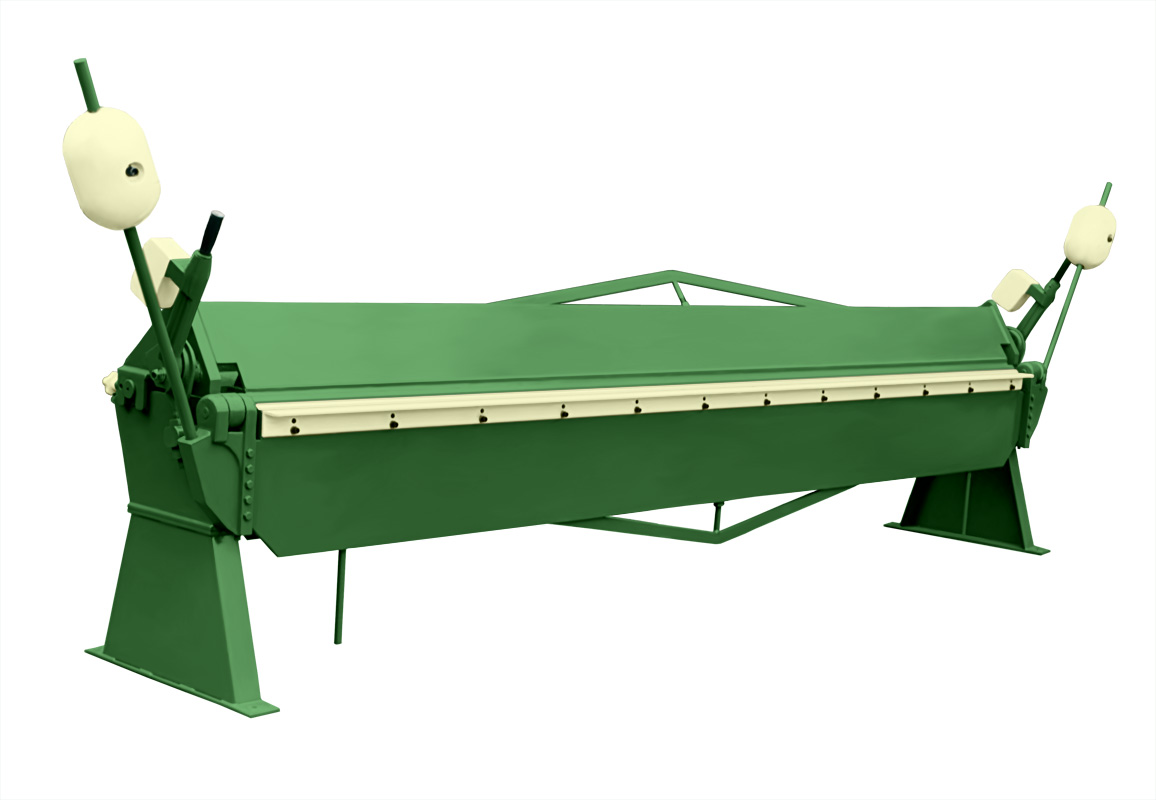

HAND STRAIGHT BRAKE
(FLOOR TYPE)

SPECIFICATIONS\ MODEL TSB-1316F TSB-1325F TSB-1825F TSB-2516F TSB-2525F TSB-3120F TSB-3713F
Bending length
          mm		 1230 1230 1850 2440 2440 3050 3660
Bending thickness
          mm 		 1.6 2.5 2.5 1.6 2.5 2.0 1.25
Max Lift of beam
          mm 		 32 50 58 50 50 50 50
Beam adjustment
          mm		 16 22 25 25 22 22 22
Size of case                               mm          L 1549 1830 2490 3110 3095 3710 4380
                          W 533 735 760 760 810 780 760
                          H   1219 1090 1160 1000 1160 1160 1150
Shipping weight         KG 265 784 998 897 1460 1448 1808
CATALOG
FEATURES:


* All-steel welded construction, plastic handgrips, and bronze bushings, which reduce wear.

* Heavy truss rods and braces are designed to give superior strength.

* Precise bed and beam alignment assures working accuracy.

* Adjustable clamping beam for a correct setting according to the sheet thickness.

* Angle stopper can adjust the bending angle.


STANDARD EQUIPMENT:

* One of counterweight for TSB-1316F, Two of counterweight for other model.

* One of full length bending dies equipped with machine.

* Operation instruction manual.

STANDARD EQUIPMENT:

*  Manual back gauge.
