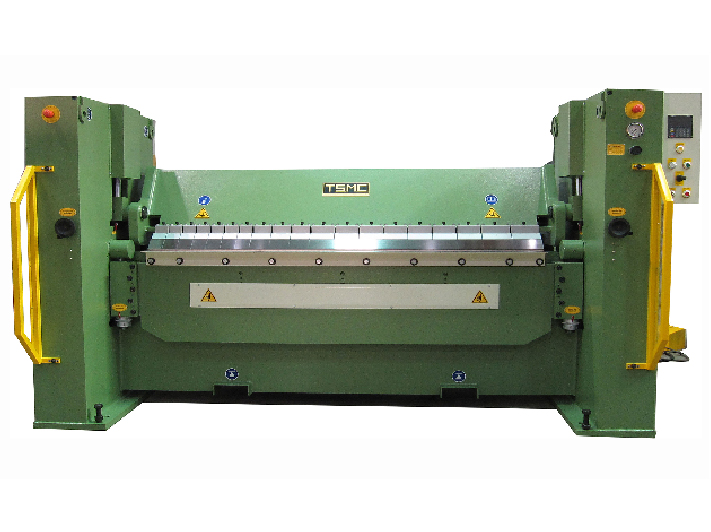

HYDRAULIC BENDER

SPECIFICATIONS\ MODEL THB-2025H THB-2032H THB-2065H THB-2525H THB-2532H
Bending length
          mm
 2030 2030 2030 2540 2540
Bending thickness
          mm
 2.5 3.2 6.5 2.5 3.2
Bending angle
          mm
 0 - 135° 0 - 135° 0 - 135° 0 - 135° 0 - 135°
Beam adjustment
          mm		 25 25 25 25 25
Min reverse bend
          mm  		 15 25 35 15 25
Motor          (hp)        3 5 10 3 5
Size of case        L        mm 3000 3000 3300 3850 3850
                           W      mm 1100 1100 1550 1700 1700
                           H       mm 1750 1750 1900 1800 1860
Shipping weight           KG 2100 2450 3710 3400 3900



SPECIFICATIONS\ MODEL THB-2565H THB-3120H THB-3132H THB-3165H THB-3732H
Bending length
          mm
 2540 3100 3100 3100 3700
Bending thickness
          mm
 6.5 2.0 3.2 6.5 3.2
Bending angle
          mm
 0 - 135° 0 - 135° 0 - 135° 0 - 135° 0 - 135°
Beam adjustment
          mm		 25 25 25 25 25
Min reverse bend
          mm  		 35 15 25 35 30
Motor          (hp)        10 3 5 10 5
Size of case        L        mm 3900 4300 4300 4500 5200
                          W       mm 1750 1770 1770 1750 1750
                          H        mm 2050 1890 1890 2050 1950
Shipping weight          KGS 6200 4000 4520 7100 5500




CATALOG

FEATURES:

＊ All-steel welded construction.

＊ Heavy truss rods and braces are designed to give superior strength.

＊ Precise bed and beam alignment assures working accuracy.

＊ Quick and easy die clearance setting by manual hand wheels.

＊ Quick and easy bending angle setting by indication knob.

＊ Selection of clamping, bending, and automatic clamping-bending-return.

＊ Fully electric/hydraulic system with motor and overload protection.

＊ Minimum noise bending and operation.

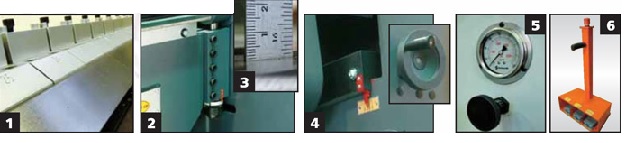

STANDARD ACCESSORY:

1. Standard segmented or straight upper blade.

2&3. Gap clearance manual adjustor.

4. Hold-down pressure adjusted by hand-wheel

5. Hydraulic pressure adjustable on the front side

6. Three functions foot pedal

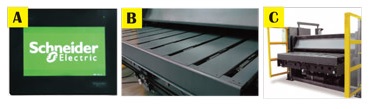

OPTIONAL ACCESSORY:

A. 2-Axis NC control system included :
    1. 7 " TOUCH screen controller
    2. 800mm motorized back gauge.

B. Extended back gauge up to 1000 / 1250 mm

C. CE conformity

D. Radius fingers or customized shape.
