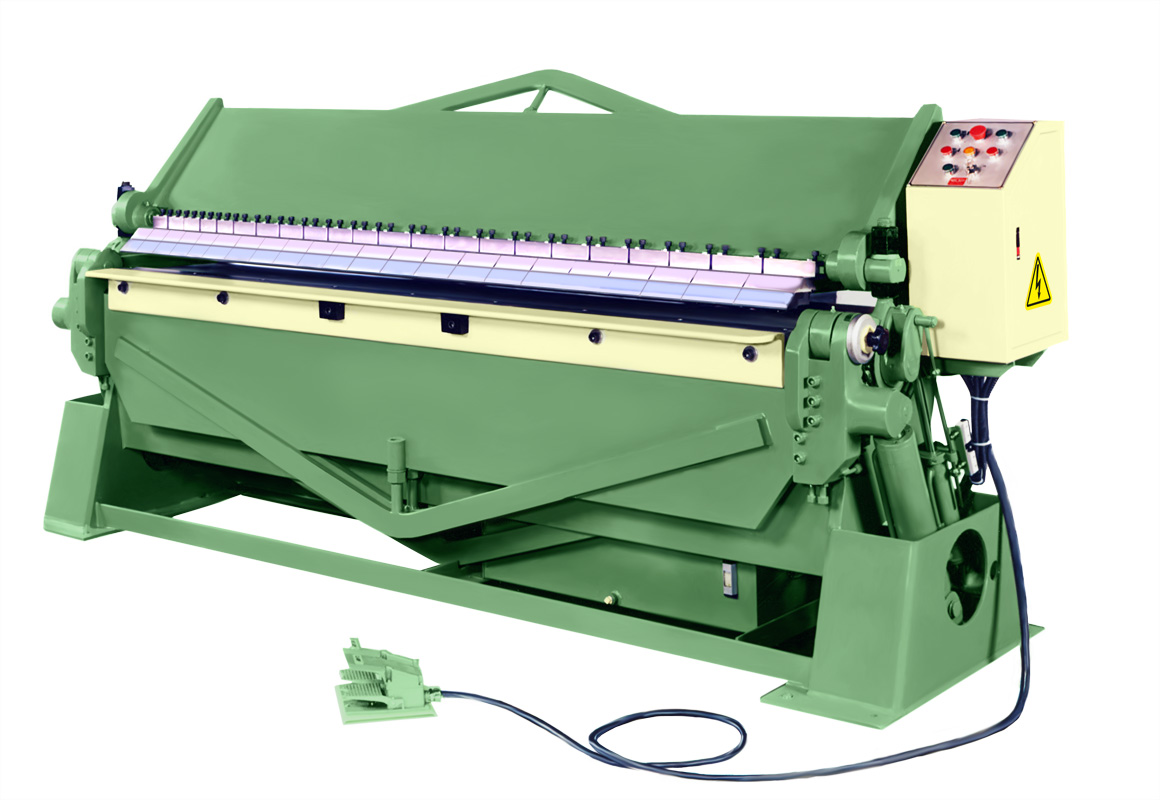

HYDRAULIC BOX & PAN BRAKE

SPECIFICATIONS\ MODEL THB-1325LU THB-1825LU THB-2525LU THB-2532LU THB-3120LU THB-3125LU
Bending length
          mm		 1220 1830 2440 2440 3050 3050
Bending thickness
          mm 		 2.5 2.5 2.5 3.2 2.0 2.5
Max. lift of beam
          mm 		 38 38 50 50 50 50
Beam adjustment
          mm		 22 22 22 22 22 22
Motor          (hp)        2 2 3 5 3 5
Size of case        L        mm 2180 2700 3360 3360 4030 4030
                           W      mm 1000 1000 1000 1000 1000 1035
                           H       mm 1590 1600 1640 1700 1620 1660
Shipping weight           KG 1250 1484 1760 2533 2234 3130
CATALOG

FEATURES:

＊ All-steel welded construction.

＊ Heavy truss rods and braces are designed to give superior strength.

＊ Precise bed and beam alignment assures working accuracy.

＊ Quick and easy die clearance setting by manual hand wheels.

＊ Quick and easy bending angle setting.

＊ Selection of clamping, bending, and automatic clamping-bending-return.

＊ Fully electric/hydraulic system with motor and overload protection.

＊ Minimum noise bending and operation.

STANDARD EQUIPMENT:

* Measurement of hand-operated back gauge.

* Remote foot pedal switch.

* Thickness setting device.

* Bending angle setting device.

* Operation instruction manual.

OPTIONAL FEATURES:

* NC Power back gauge
