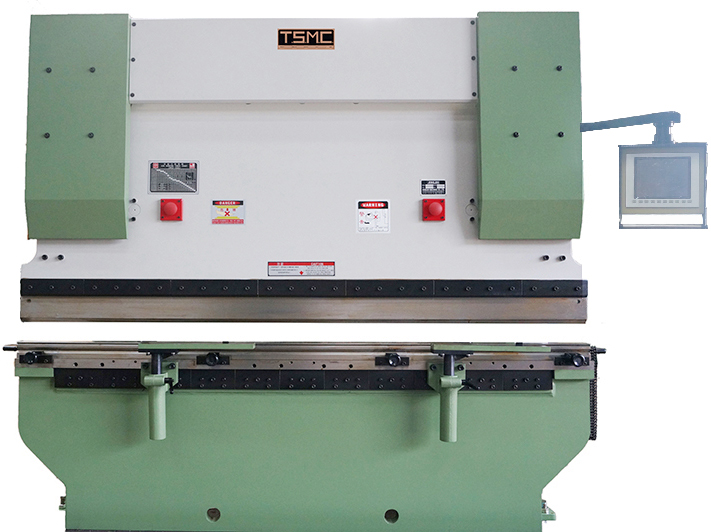

NC HYDRAULIC PRESS BRAKE

SPECIFICATIONS\ MODEL (TPB - T) 4015T 6020T 6026T 6032T 8020T 8026T 8032T 11026T
Capacity ( T x L )
          mm
 3.0 x 1500 3.5 x 2000 3.0 x 2600 2.0 x 3200 4.5 x 2000 3.2 x 2600 2.5 x 3200 4.5 x 2600
Inside distance
          mm
 1200 1600 2150 2750 1550 2150 2750 2050
Ram stroke
          mm
 150 150 150 150 150 150 150 200
Open height
          mm		 300 300 300 300 300 300 300 350
Working bed width
          mm		 150 150 150 150 150 150 150 150
Main motor
        hp x p		 3 x 4 5 x 4 5 x 4 5 x 4 7.5 x 4 7.5 x 4 7.5 x 4 10 x 6
Lower speed
        mm / sec		 100 100 100 100 100 100 100 100
Bending speed
        mm / sec		 10 ~ 12 10 ~ 12 10 ~ 12 10 ~ 12 12 ~ 14 12 ~ 14 12 ~ 14 14 ~ 16
Rasing speed
       mm  / sec		 55 ~ 60 55 ~ 60 55 ~ 60 55 ~ 60 55 ~ 60 55 ~ 60 55 ~ 60 55 ~ 60
Throat depth
           mm		 305 305 305 305 305 305 305 305
Net weight
      tons		 3 4 4.5 5 4.5 5.4 6 6.8
Size of case
           mm            L  		 2100 2500 3050 3650 2450 3050 3650 3200
                             W   1550 1550 1550 1550 1600 1600 1600 1600
                             H 2150 2200 2200 2200 2180 2180 2180 2350



SPECIFICATIONS\ MODEL (TPB - T) 11032T 11040T 16032T 16040T 22032T 22040T 30032T 30040T
Capacity ( T x L )
          mm
 3.2 x 3200 2.5 x 4000 5.4 x 3200 4.5 x 4000 7.5 x 3200 6.5 x 4000 10 x 3200 9 x 4000
Inside distance
          mm
 2650 3450 2600 3400 2500 3300 2460 3200
Ram stroke
          mm
 200 200 200 200 200 200 250 250
Open height
          mm		 350 350 400 400 400 400 500 500
Working bed width
          mm		 150 150 200 200 200 200 250 250
Main motor
        hp x p		 10 x 6 10 x 6 15 x 6 15 x 6 20 x 6 20 x 6 25 x 6 25 x 6
Lower speed
        mm / sec		 100 100 100 100 100 100 100 100
Bending speed
        mm / sec		 14 ~ 16 14 ~ 16 14 ~ 16 14 ~ 16 16 ~ 18 16 ~ 18 16 ~ 18 16 ~ 18
Rasing speed
       mm  / sec		 55 ~ 60 55 ~ 60 55 ~ 60 55 ~ 60 55 ~ 60 55 ~ 60 45 ~ 50 45 ~ 50
Throat depth
           mm		 305 305 305 305 305 305 305 305
Net weight
      tons		 7.5 8.5 10.5 13.5 12.5 15 17 20
Size of case
           mm            L  		 3800 4600 3700 4600 3800 4500 3800 4500
                             W   1600 1600 1800 1800 1850 1850 1900 2000
                             H 2350 2350 2800 2850 2850 2950 3000 3200



SPECIFICATIONS\ MODEL (TPB - T) 30051T 30062T 36040T 36051T 36062T 45040T 45051T 45062T
Capacity ( T x L )
          mm
 6.5 x 5100 5.5 x 6200 10 x 4000 8 x 5100 6.5 x 6200 13 x 4000 10 x 5100 8 x 6200
Inside distance
          mm
 4300 5250 3100 4150 5200 3100 4100 5150
Ram stroke
          mm
 250 250 250 250 250 300 300 300
Open height
          mm		 500 500 500 500 500 550 550 550
Working bed width
          mm		 250 250 250 250 250 250 250 250
Main motor
        hp x p		 25 x 6 25 x 6 30 x 6 30 x 6 30 x 6 40 x 6 40 x 6 40 x 6
Lower speed
        mm / sec		 100 100 100 100 100 100 100 100
Bending speed
        mm / sec		 16 ~ 18 16 ~ 18 16 ~ 18 16 ~ 18 16 ~ 18 16 ~ 18 16 ~ 18 16 ~ 18
Rasing speed
       mm  / sec		 45 ~ 50 45 ~ 50 45 ~ 50 45 ~ 50 45 ~ 50 45 ~ 50 45 ~ 50 45 ~ 50
Throat depth
           mm		 305 305 355 355 355 355 355 355
Net weight
      tons		 24 31 22 26 32 27 32 38
Size of case
           mm            L  		 5600 6700 4600 5600 6700 4600 5600 4800
                             W   2100 2200 2250 2250 2350 2350 2400 2450
                             H 3900 4000 3500 4250 4500 4100 4450 4700
CATALOG

FEATURES:

＊ All-steel welded structure of balanced frame and ram, furnace-stress-relieved before machining.
    The one-time process of the entire frame assures more accuracy.

＊ With the high-steel balanced shaft to keep the parallelism between the upper and bottom apron
    efficient assure the bending angle.

＊ Depth control for air bending is obtained using the mechanical gauges adjustable by an electric
    motor with a digital readout that simultaneously controls the two screws inside the cylinders.

＊ The easy operation bending angle compensation device can correct every point of the bending
    angle.

＊ The numerical control power back gauge penetration accuracy of +\- 0.1mm.

＊ Selected one side adjustment to allow just one cylinder to be adjusted for taper work.

＊ Automatic multi-speed operation giving fast approach、slow bending and fast return.
    The changeover from fast to slow is pre-set using electrical and mechanical control.

STANDARD EQUIPMENT:



1. Motor & touch screen controller

2. Power back gauge

3. Angle preset device

4. Angle compensation device

5. Remote foot control pedal

6. Measurement front gauge & supporting arm

7. Upper die

8. Bottom die

9. Maintenance tool and leveling screws

10. Instruction manual
