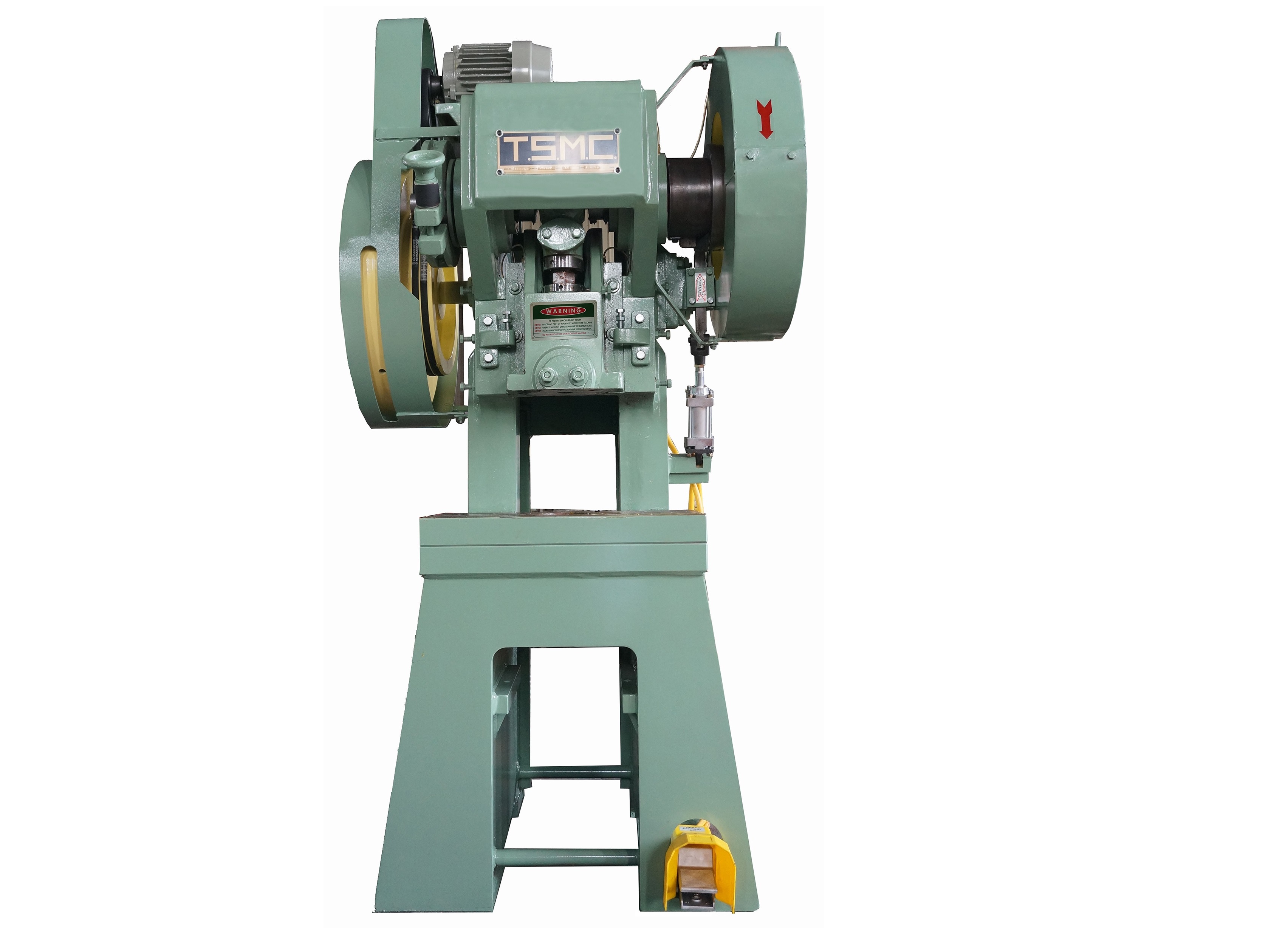

O.B.S GEAR TYPE PRESS
(AIR CYLINDER CLUTCH)

SPECIFICATIONS \ Model TPP-30SA TPP-40SA TPP-50SA TPP-60SA
Capacity
     ton		 30 40 50 60
Stroke depth
      mm          		 90 100 100 110
Stroke per minute
      S.P.M		 50.8 50.8 50.8 50.8
Die height
      mm		 260 260 310 330
Diameter of ram hole          mm 50.8 50.8 50.8 50.8
Adjustment of ram
        mm    		 50 50 60 60
Area of ram
        mm		 220 x 220 220 x 220 350 x 220 350 x 220
Area of table
        mm		 700 x 350 750 x 400 750 x 400 800 x 450
Area of auxiliary table
        mm		 700 x 350 750 x 400 750 x 400 800 x 450
Main motor
        hp x p		 2 x 4 3 x 4 5 x 4 5 x 4
Shipping weight
          kg		 1950 2450 3450 4450
Size of case
         mm       L
                      W
                      H    		 1400
1400
2270		 2480
1580
1520		 2600
1600
1650		 2670
1650
1700

CATALOG

FEATURES:

＊Open back straight frame design stronger for punching and drawing.

＊Frame construction—The frame is fabricated in prime steel and reinforced for greater strength and
    rigidity.

＊ The process of precision machine tool assures the ost accuracy.

＊ Slide design—The special slide design lengthens the service life of press dies and promotes
    efficiency.

＊ Lubrication—Centralized lubrication can route the oil to the running parts and provides less wear
    and longer service.

＊ Suitable range—It is suitable for auto parts and accessories of motorcycle and agriculture
    machinery, electronic industry, and all metal products.

STANDARD EQUIPMENT:

1. Motor

2. Manual Central Lubricator

3. Auxiliary table

4. Adjusting handle

5. Flywheel and Gear protect cover

6. Set of feet pad

7. Air cylinder pin clutch + power pedal

8. Instruction manual
