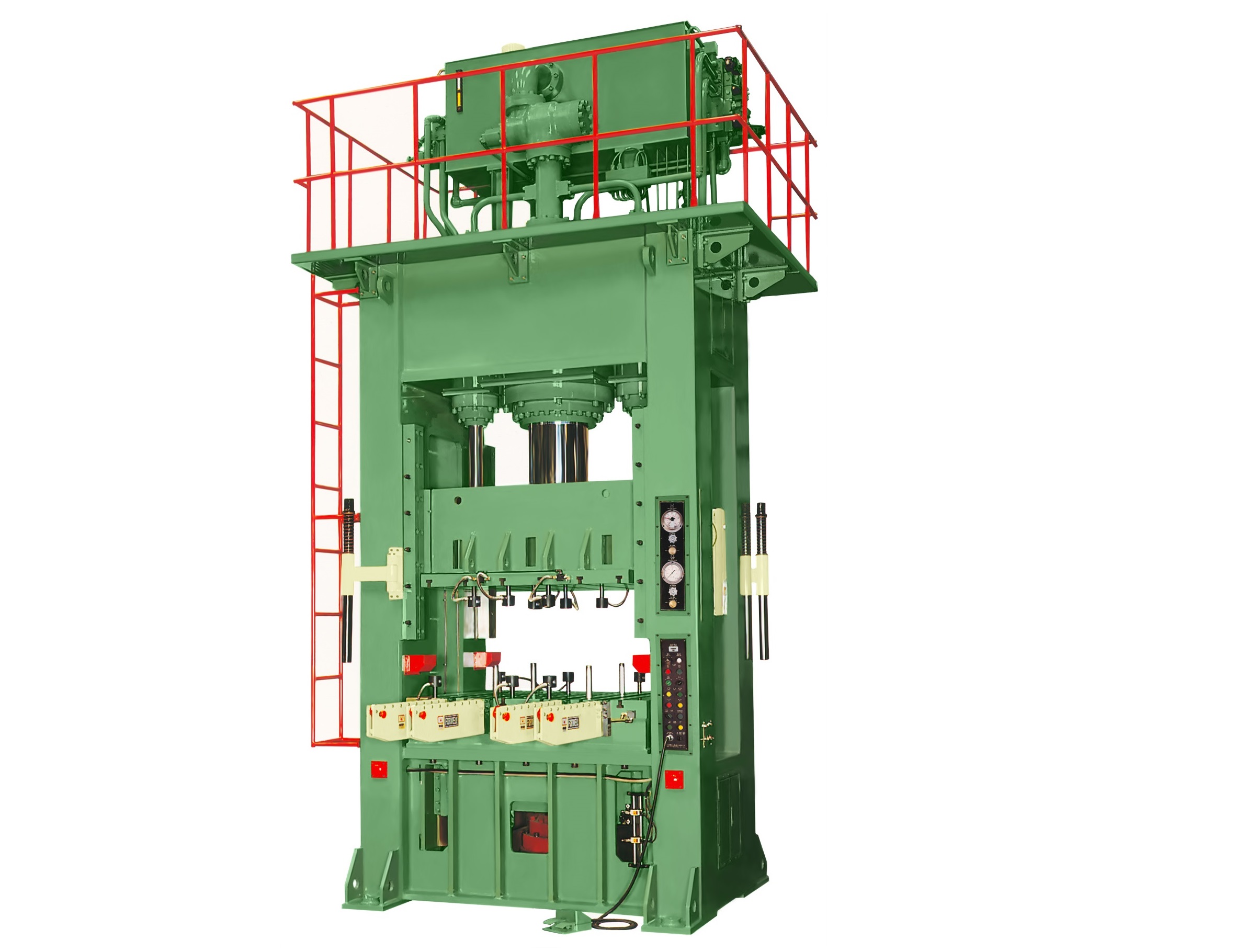

DEEP DRAWING HYDRAULIC PRESS


SPECIFICATIONS \ Model THP-100 THP-150 THP-200 THP-250 THP-300 THP-400
Capacity
     ton		 100 150 200 250 300 400
Area of bolster plate
      mm          		 800 x 1000 900 x 1200 1000 x 1200 1000 x 1500 1200 x 1500 1200 x 1800
Stroke depth
      mm		 500 600 700 700 800 800
Open height
      mm		 650 800 950 950 1100 1100
Main motor
      hp x p		 15 x 6 20 x 6 25 x 6 30 x 6 30 x 6 40 x 6
Down stroke speed
      mm / sec    		 300 300 300 300 300 300
Pressing speed
      mm / sec		 9 / 25 10 / 30 10 / 25 7.5 / 25 7 / 20 8 / 20
Return stroke speed
      mm / sec		 220 235 250 250 250 250
Capacity of buffer cylinder
       ton		 30 60 70 100 100 150
Stroke of buffer cylinder
        mm		 200 250 250 300 300 350
Size of case
         mm       L
                      W
                      H    		 1650
2150
4700		 1750
2350
4900		 1800
2450
5300		 1800
2800
5400		 2050
2800
5800		 2250
3250
6350
Shipping weight
    ton		 9 11 14 19 25 32
CATALOG

FEATURES:

＊ All-steel welded structure of balanced frame and ram, furnace-stress-relieved before machining

＊ The one-time process of the entire frame assures more accuracy

＊ Fully electric \ hydraulic system with motor and overload protector. Centralized hydraulic control
    mounted on the common block. Minimum tubes and connections. A preset relief valve prevents
    overloading operation

＊ With 8 smooth surface guide plate keeps slide accuracy, providing long machine life

＊ Special design of cylinder for deep drawing and forming and other special workings

＊ Automaticmulti-speed operation giving fast approach, slow, bending, and fast return.
    The changeover from fast to slow is pre-setusingf electrical and mechanical control

＊ Centralize lubrication automatically with recalculating filtered oil system

＊ This hydraulic press is especially for the automobile industry, motorcycle industry,
    kitchenware dining ware, electric equipment

STANDARD EQUIPMENT:

1. Motor and controls

2. Hydraulic system

3. Oil cooling system

4. Lighting unit

5. Leveling screw

6. Pair of buffer system

7. Maintenance tool

8. Instruction manual
