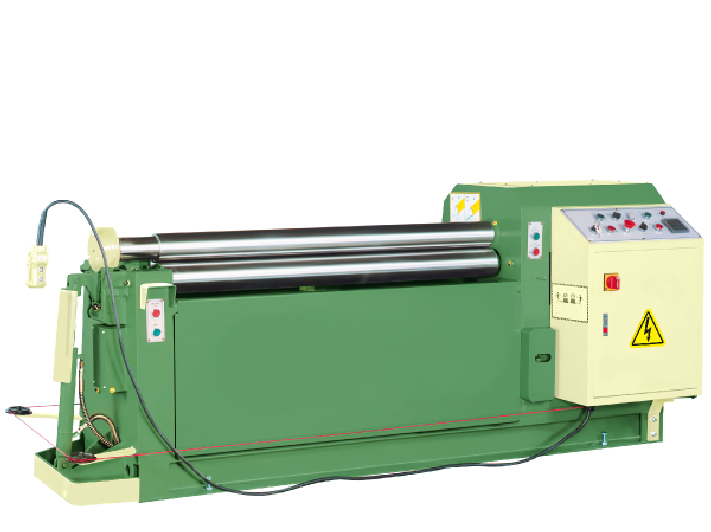

POWER ROLL
(SINGLE PINCH)
| Specifications \Model | TPR-1304E | TPR-1503E | TPR-1506E | TPR-1805E | TPR-2503E | TPR-2505E | TPR-1004E |
| Capacity mm |
4.0 x 1270 | 3.0 x 1550 | 6.0x 1550 | 4.5 x 1850 | 3.0 x 2500 | 5 x 2500 | 4 x 3050 |
| Roll dia. mm |
120 | 120 | 160 | 160 | 160 | 180 | 180 |
| Motor hp |
2 | 2 | 5 | 5 | 5 | 5 | 5 |
| Min. rolling dia. mm |
254 | 210 | 280 | 280 | 280 | 380 | 380 |
| Size of case mm L W H |
3030 1150 1330 |
3350 1100 1350 |
3750 1150 1480 |
4040 1150 1470 |
4560 1150 1470 |
4320 1090 1330 |
5280 1180 1510 |
| Shipping weight Kg |
1100 | 1400 | 2320 | 2500 | 2850 | 3300 | 3750 |
CATALOG
FEATURES：
＊The frame is heavy welded steel construction， the end frame and base are welded separately
＊The base is welded firstly then the end frame
＊The three rolls are manufactured of forged steel and hen thru high-frequency heat treated to
specification HRC 45 degree
＊All roll shafts are journalized in spherical roller bearings, which keep friction losses to a minimum
＊Equipped with an easily read dial indicator for indicating the position of the rear roll. The real
role is lifted by hydraulic operation
＊Hydraulically operated top roll drop end can be opened for removal of finished cylinder.
STANDARD EQUIPMENT：
1. Motor & controls
2. Hydraulic open-end yoke
3. Control panel with LED position indicator
4. Hardened steel rolls
5. Remote foot control switch
6. Operation instruction manual
