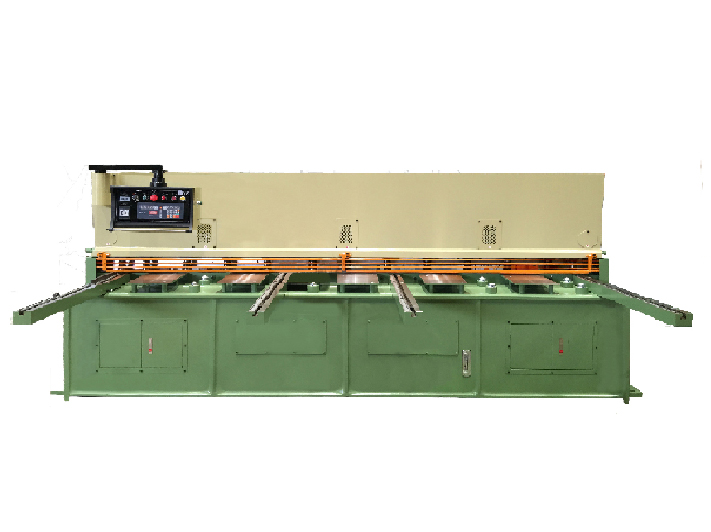

NC HYDRAULIC SHEAR
(SWING BEAM)

FEATURES:

＊ All-steel welded structure of balanced frame and ram, furnace-stress-relieved before machining
    The one-time process of the entire frame assures more accuracy and reduces the wear of the blade

＊ Fully electric \ hydraulic system with motor and overload protected the frame and blade

＊ Centralized hydraulic control mounted on the common block. minimum tubes and connections.
    A preset relief valve prevents overloading operation

＊ Swim beam design, mounted with special bearings. It gives immediate clearance to the right
    material and allowing it to drop away without jamming the bpowerfullyade

＊ Individual hydraulic cylinder hold-downs with self-aligning design provide powerfully
    accuracy clamping

＊ Shadow line lighting illuminates the cutting line on the material

＊ Easy cutting length adjustment, free to set from 0 to the entire length of the cut

＊ Power back gauge with working counter and numerical digital readout graduated to 0.1mm


CATALOG
SPECIFICATIONS \ MODEL
THS - SERIES 		 1565S 1595S 15130S 15160S 15190S 2065S 2095S 20130S 20160S 20190S
Capacity ( T x L )
          mm		 6.5 x 1600 9.5 x 1600 13 x 1600 16 x 1600 20 x 1600 6.5 x 2050 9.5 x 2050 13 x 2050 16 x 2050 20 x 2050
Hold down
          set 		 8 8 8 8 8 10 10 10 10 10
Main motor
          hp 		 10 20 25 30 40 10 25 30 40 50
Stroke per minute
          S.P.M		 26 17 ~ 31 11 ~ 20 9 ~ 17 8 ~ 16 22 18 ~ 32 11 ~ 20 9 ~ 17 9 ~ 17
Shear angle
          mm		 1°30' 1°30' 1°30' 2° 2° 1°30' 1°30' 1°30' 2° 2°
Throat depth
        hp x p		 100 100 100 100 100 100 100 100 100 100
Back gauge range
        mm		 800 800 800 800 800 800 800 800 800 800
Front gauge range
        mm		 1250 1250 1250 1250 1250 1250 1250 1250 1250 1250
Gross weight
      tons		 4.2 5.2 6.0 8.5 11.0 5.8 7.2 8.6 10.7 13.8
Size of case
      mm         L  		 2600 2600 2700 2700 2700 3050 3050 3100 3150 3200
                     W   2100 2100 2100 2150 2250 2150 2150 2200 2250 2350
                     H 1750 1750 1900 2000 2150 1850 1850 2000 2150 2300



SPECIFICATIONS \ MODEL
(TES ) SERIES 		 2565S 2595S 25130S 25160S 25190S 3165S 3195S 31130S 31160S 31190S
Capacity ( T x L )
          mm		 6.5 x 2500 9.5 x 2500 13 x 2500 16 x 2500 20 x 2500 6.5 x 3100 9.5 x 3100 13 x 3100 16 x 3100 20 x 3100
Hold down
          set 		 11 11 11 11 11 13 13 13 13 13
Main motor
          hp 		 10 25 40 50 60 10 25 40 60 75
Stroke per minute
          S.P.M		 19 16 ~ 28 11 ~ 20 10 ~ 18 8 ~ 14 16 13 ~ 24 11 ~ 20 9 ~ 16 8 ~ 15
Shear angle
          mm		 1°30' 1°30' 1°30' 2° 2° 1°30' 1°30' 1°30' 2° 2°
Throat depth
        hp x p		 100 100 100 100 100 100 100 100 100 100
Back gauge range
        mm		 800 800 800 800 800 800 800 800 800 800
Front gauge range
        mm		 1250 1250 1250 1250 1250 1250 1250 1250 1250 1250
Gross weight
      tons		 5.7 8.2 10.7 13.5 16.2 7.3 9.2 12.7 15.5 22.0
Size of case
      mm          L  		 3500 3500 3550 3600 3750 4100 4100 4100 4200 4400
                      W   2150 2150 2200 2300 2400 2150 2150 2200 2250 2450
                      H 1900 1900 2050 2000 2550 1950 1950 2100 2250 2600



SPECIFICATIONS \ MODEL
(TES ) SERIES 		 4165S 4195S 41130S 41160S 41190S
Capacity ( T x L )
          mm		 6.5 x 4100 9.5 x 4100 13 x 4100 16 x 4100 19 x 4100
Hold down
          set 		 18 18 18 18 18
Main motor
          hp 		 15 30 50 60 75
Stroke per minute
          S.P.M		 16 13 ~ 24 9 ~ 16 7 ~ 13 7 ~ 13
Shear angle
          mm		 1°30' 1°30' 1°30' 2° 2°
Throat depth
        hp x p		 100 100 100 100 100
Back gauge range
        mm		 800 800 800 800 800
Front gauge range
        mm		 1250 1250 1250 1250 1250
Gross weight
      tons		 12.7 15.5 20 25 30
Size of case
      mm         L  		 5100 5100 5150 5200 5400
                     W   2200 2200 2300 2400 2700
                     H 2100 2100 2250 2400 2750



STANDARD EQUIPMENT:

1. One pair of high-grade alloy tool steel blades equipped with machine

2. Remote foot pedal switch.

3 Front-operated NC (SB 207) power back gauge.

4. Working numbers counter.

5. Illumination lighting device

6. Safety finger guard in front of the blade

7. Front supporting arms, measurement side-gauge with disappearing stopper

8. Operation instruction manual
