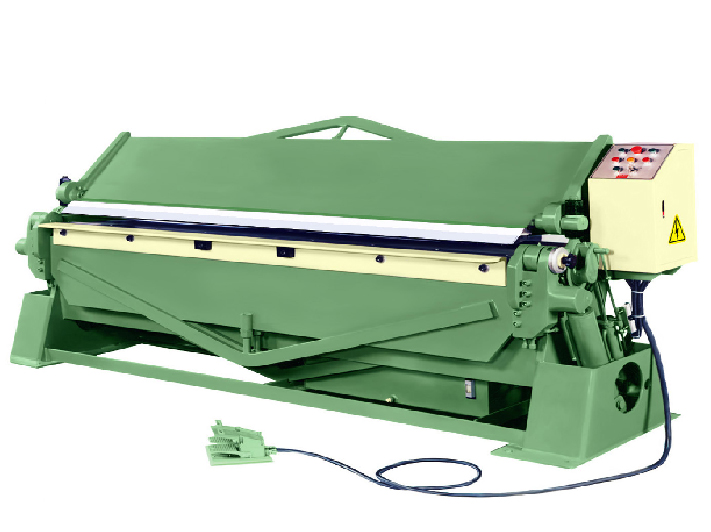

HYDRAULIC STRAIGHT BRAKE

SPECIFICATIONS\ MODEL THB-2525LS THB-2532LS THB-3120LS THB-3125LS THB-3132LS THB-3712LS
Bending length
          mm
 2440 2440 3050 3050 3050 3660
Bending thickness
          mm 		 2.5 3.2 2.0 2.5 3.2 1.25
Max. lift of beam
          mm 		 50 50 50 50 50 50
Beam adjustment
          mm		 22 22 22 22 22 22
Motor                          hp   3 5 3 5 5 3
Size of case        L        mm 3360 3360 4030 3970 4030 4570
                           W      mm 990 1000 990 1110 1210 1000
                           H       mm 1600 1700 1620 1710 1800 1590
Shipping weight           KG 1800 2522 2038 2893 3112 2190
CATALOG

FEATURES:

＊ All-steel welded construction.

＊ Heavy truss rods and braces are designed to give superior strength.

＊ Precise bed and beam alignment assures working accuracy.

＊ Quick and easy die clearance setting by manual hand wheels.

＊ Quick and easy bending angle setting.

＊ Selection of clamping, bending, and automatic clamping-bending-return.

＊ Fully electric/hydraulic system with motor and overload protection.
​
＊ Minimum noise bending and operation.

STANDARD EQUIPMENT:

* Measurement of hand-operated back gauge.

* Remote foot pedal switch.

* Thickness setting device.

* Bending angle setting device.

* Operation instruction manual.

OPTIONAL FEATURES:

* NC Power back gauge
