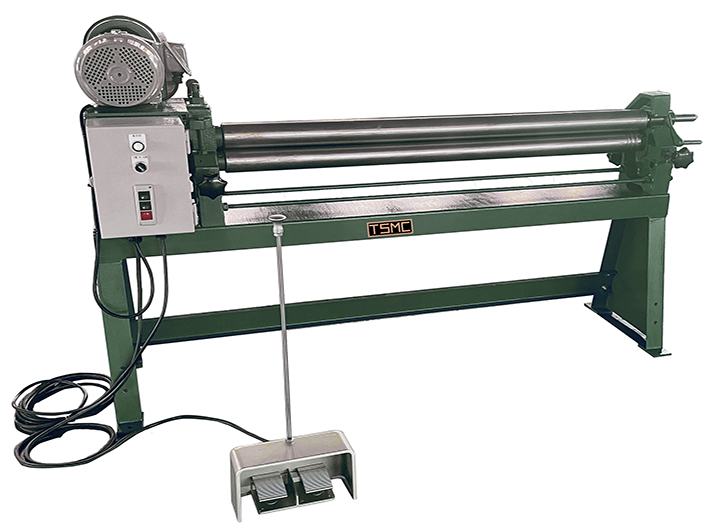

POWER SLIP ROLLER
| Specifications \Model | TPSR-0725E | TPSR-1020E | TPSR-1315E | TPSR-1025E | TPSR-1320E | TPSR-0730E | TPSR-1615E |
| Capacity mm | 2.5 x 670 | 2.0 x 970 | 1.5x 1270 | 2.5 x 970 | 2.0 x 1270 | 3.0 x 670 | 1.5 x 1550 |
| Roll dia. mm | 75 | 75 | 75 | 90 | 90 | 90 | 90 |
| Motor hp | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Speed M/min | 3.3 5.5 8.3 |
3.3 5.3 8.3 |
3.3 5.3 8.3 |
3.9 6.3 9.9 |
3.9 6.3 9.9 |
3.9 6.3 9.9 |
3.9 6.3 9.9 |
| Size of case L mm W mm H mm |
1300 630 800 |
1600 630 800 |
1900 630 800 |
1350 660 900 |
1650 660 900 |
1950 660 900 |
2250 660 900 |
| Shipping weight Kg | 280 | 310 | 360 | 370 | 440 | 470 | 530 |
CATALOG
FEATURES:
* Economic, convenient, and simple operation machine
* The asymmetric design provides pre-bending capability on the machine.
* Manually roll movement adjustment and roll rotation driven by AC motor.
* The top slip roll allows rthe emoval of cylindrical components.
* Roller diameter Φ 75mm with casting stand.
Φ 90mm with steel frame.
STANDARD EQUIPMENT:
* Hardened solid rolls.
* 3 grooves for round bar bending.
* AC power motor and controls.
* Speed reducer.
* V-belt and pulley wheels.
* Remote foot pedal on the trailing lead.
